UHF Alien H3 RFID Anti-Metal Sticker Tag & Long Distance Read Range

Material of anti-metal tag is a special anti-magnetic absorbing material encapsulated into the electronic label. It resolved the technical problem that the electronic labels can’t be attached to the metal surface. Anti-metal products are waterproof, anti-acid, anti-alkali, anti-collision, and can be used outdoors.

Alien H3 chip is from Alien Technology Corporation in US, which is most widely used for UHF RFID Tags and Stickers with its stable and long distance read range from 1m-20m depending on the power of readers and environment.

With its special features, UHF RFID ABS on metal tag is widely used in many applications, such as Container Tracking, Logistics tracking, Asset Tracking, Warehousing Management, Metal pallet administration, Administration of high pressure container, Outdoor power equipment inspection, iron tower wire rod inspection, elevator inspection, pressure vessel, factory equipment management, etc.

RFID GENERAL is a professional manufacturer of UHF RFID Anti-metal Tag for more than 7 years.  We use new great quality material, so the products work stable and durable.

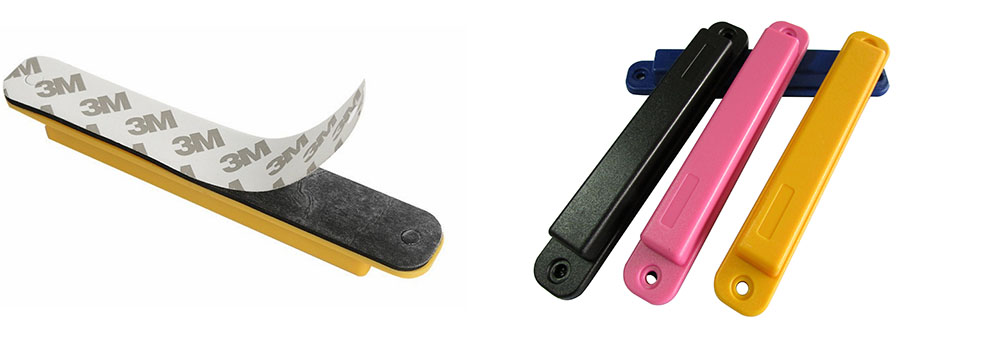

RFID UHF anti metal Sticker tag 0202

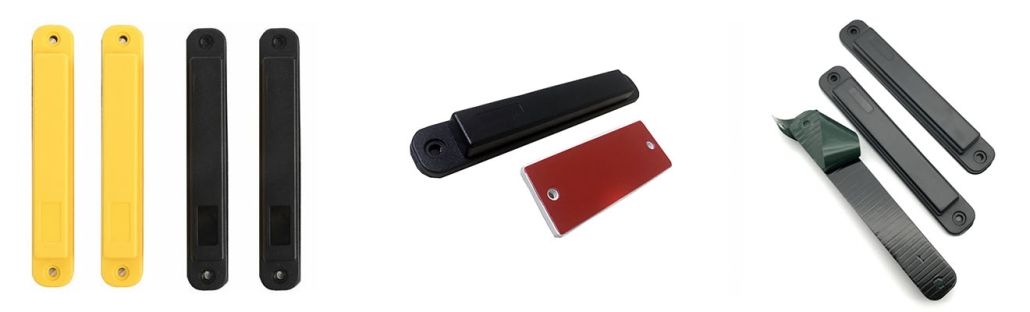

UHF ABS anti metal tags

Product Specification

Base Material ABS, used on metal surface
Size Accept customization
Color Black, White, customized
Craft Full color Printing or Blank, Barcode, QR code, Encoding, etc.
Frequency 860-960MHz
Protocol ISO 18000-6C
Chip Options Alien H3/H4, Impinj M4QT/MR6, NXP U7/U8, etc.
Operating Mode Passive
Reading Distance 1-20m (relates with the antenna,reader and working environment)
Read/Write Times 100,000 times
Data Endurance More than 10 years
Working Temperature -0℃~+50℃
Installation Method 3M adhesive backing, Screw bolts, Rivets, Magnet Fixed
MOQ Usually 500pcs. For some special request, pls contact us for inquiry.

Here at RFID general,

Our RFID samples are available for testing anytime.

Please feel free to contact us for Quote Sheet and free samples to test!
