HF/NFC 13.56MZh & UHF Tamper Proof Security Seal RFID Label Tag

If a HF/UHF tamper resistant label is removed, it breaks the antenna’s connection with the chip and the device thus no longer has functions. This prevents the fragile tag from being used on another item. You can set up software in a reader to alert you if a tag is not read, which would tell you that an item has been either tampered or stolen.

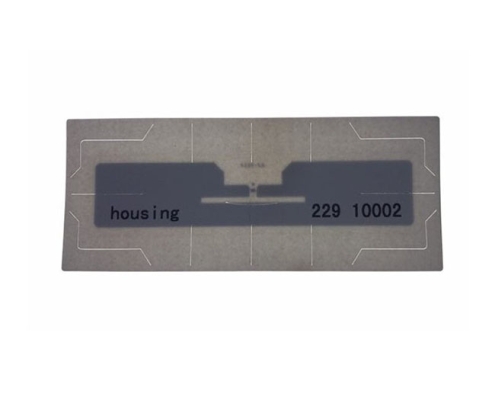

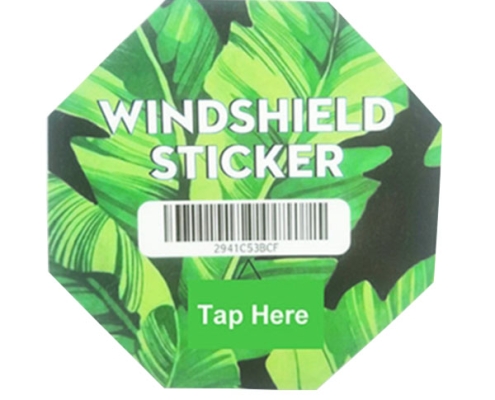

Typically, such labels are applied to high-security assets, like jewelry management, vehicle tracking. RFID Windshield tamper proof tag is specially designed for car management. It is suitable for parking access control applications such as gates communities, secured parking application or anywhere vehicle tracking is required.

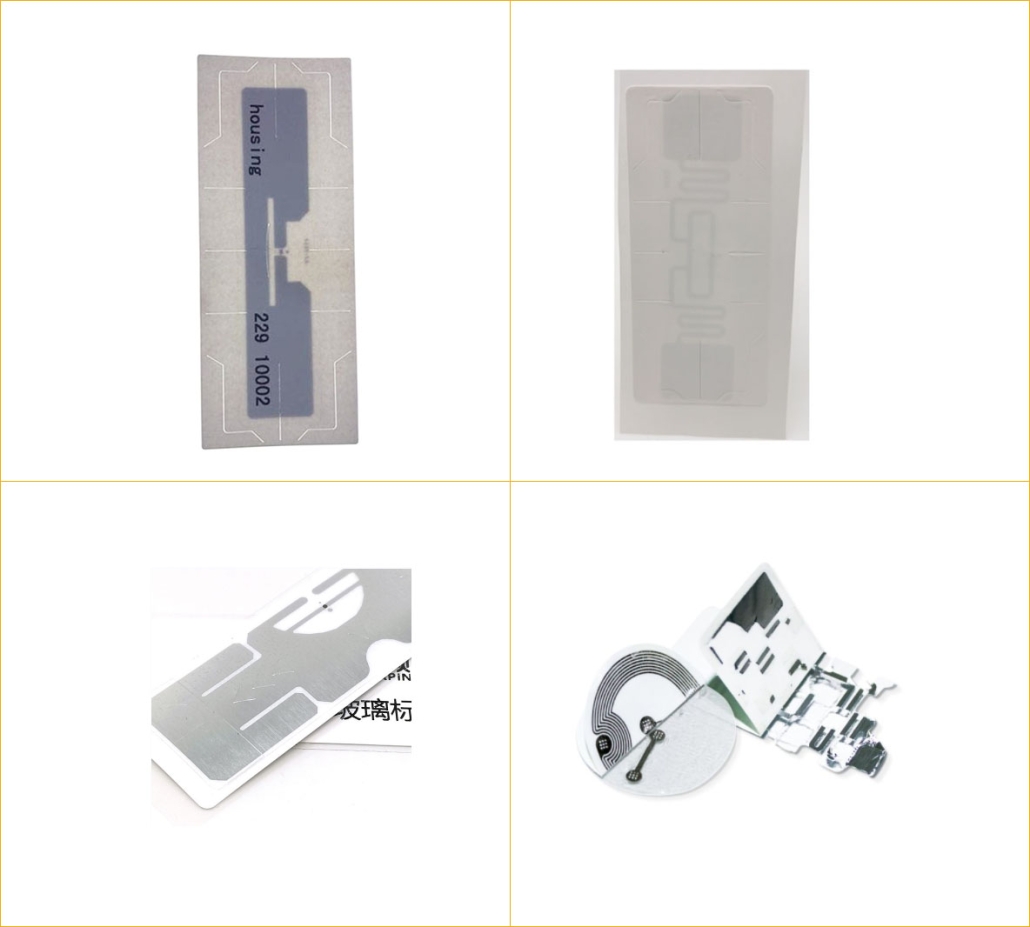

tamper proof rfid tag

Product Specification:

Base Material PVC, PET, Coated paper
Size Round: 20mm, 25mm, 30mm, 35mm, 50mm

Rectangle: 30*15mm, 30*30mm, 38*25mm, 45*45mm, 56*18mm, 73*23mm, 80*50mm

Customized Size

Craft Blank or printing serial number, barcode, QR code, encoding, etc
Frequency 13.56MHz (HF), or 860-960MHz (UHF)
Protocol ISO15693, ISO14443A, ISO 18000-6C, EPC Class 1 Gen 2
Chip Options NFC / HF 13.56MHz / ISO15693 Protocol

Icode SLI/ SLI-X, Icode SLI-S (2k)

NFC / HF 13.56MHz / ISO14443A Protocol

Mifare Classic 1k S50,Mifare 4k S70, etc

UHF / 860-960Mhz / ISO18000-6C & EPC class I Gen 2

Alien H3/H4, Impinj Monza 4QT, 4E,4D, Monza 5, etc

Operating Mode Passive
Reading Distance 1-10cm(NFC/HF), 1-10m(UHF) (relates with the antenna,reader and working environment)
Read/Write Times 100,000 times
Data Endurance More than 10 years
Working Temperature -20℃~+85℃
Packaging In roll or customized
